Getting Started with Amazon AWS IOT Cloud

Getting Started with Amazon AWS IOT Cloud

Internet of Things (IoT) is being integrated in almost every device nowadays and it will have a strong impact in the future life, from waking up in the morning to sleeping in the night. There are many hardware and software platforms available to easily build any IoT based Application. We have covered many Iot hardware platforms in previous tutorial like ESP32, Raspberry Pi, ESP8266 etc. to build simple LED projects to complex applications. We also covered Software platform for IoT like Adafruit, IFTTT, Blynk App, Artik cloud, Google Firebase etc. Today we will explore one more popular IoT cloud platform provided by Amazon called AWS (Amazon Web Services).

AWS IOT Service stands for Amazon Web Service Internet of Things. This service allows us to connect our devices to the internet to exchange data securely, process it and act upon it. Along with AWS IOT the Amazon Web Services also provides tons of other features like virtual machine deployment, web-hosting, etc.



Creating Amazon AWS User Account

To access AWS IoT Services you need to create an account, for this browse to https://aws.amazon.com/.

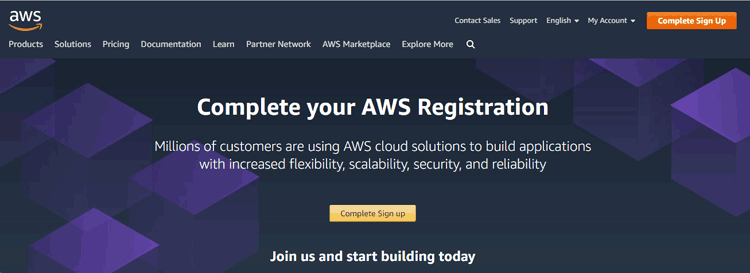

Here, click on complete sign up at right top corner, as shown in the image below.

 Amazon AWS for IoT Projects



It will redirect you to the sign up procedure. There, amazon will ask you to provide your Debit/Credit card details. You can use this service for free for 12 month duration so just enter your card details since you will not charged for 12 months, but make sure to de-activate the account before 12 months if you are not using the account any longer, otherwise it will charge you.

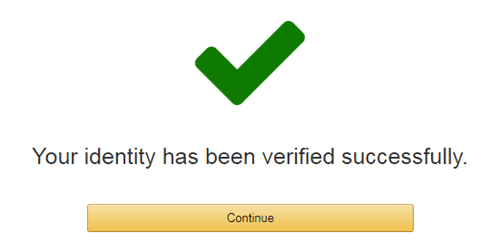

Verify Yourself on Amazon AWS for IoT Projects

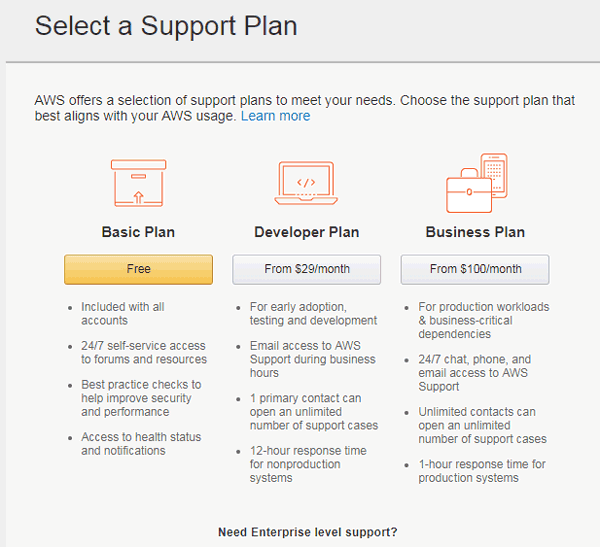

Now click on continue and choose Basic plan.

Select Plan on Amazon AWS for IoT Projects



Creating AWS thing with Certificate and policy

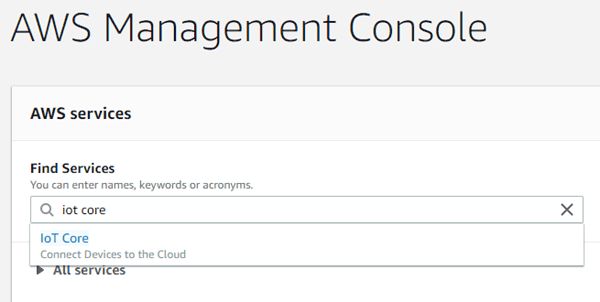

Step 1:- After creating account, search for “iot core” under AWS service, click on it to open the console.

AWS Management Console



Step 2:- Now, a dialog box will appear; just click on “get started”, as shown below.

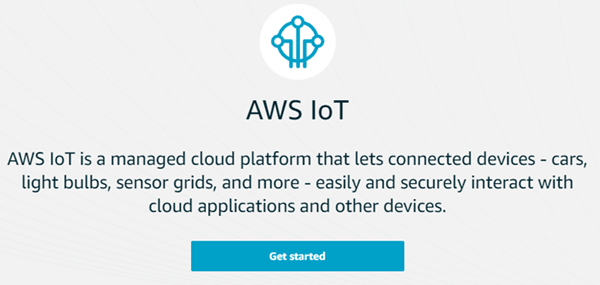

Getting Started with AWS IoT



Step 3:- The main page of AWS IoT will open, where you will find some documents for getting started with AWS IoT.

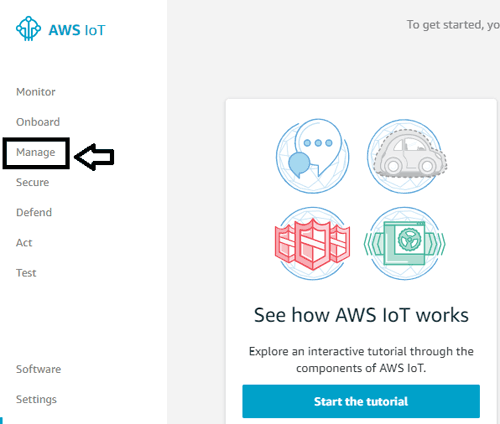

Now, on the left side Click on the “Manage” option.

Manage AWS Account for IoT Project



Step 4:- Now, register a thing to proceed. A thing is a device which can connect to the internet, so we will create a thing on this console through which our device can communicate.

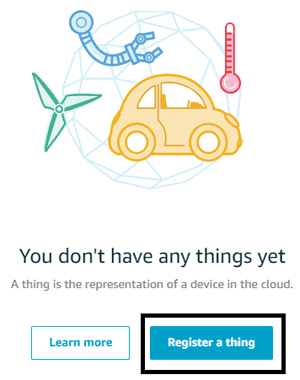

Click on “Register a thing” button, as shown in the below-mentioned image:

 Register a Thing on Amazon AWS IoT



Step 5:- It on you that how much things you needed. As you can create multiple things or even a single. For getting started with AWS IoT we are creating a single things, so click on “create a single thing”.

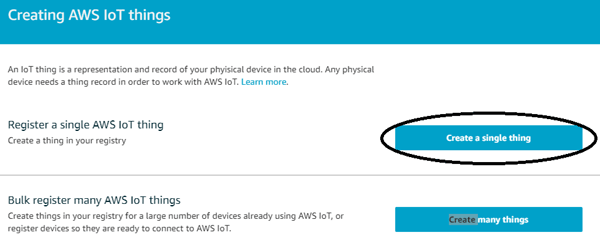

 Create a Thing on Amazon AWS IoT



Step 6:- Name your thing, like I am giving myespwork. After naming, scroll down and click on next.

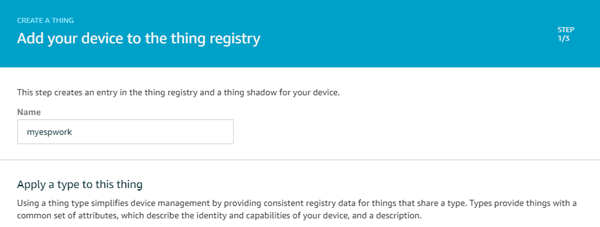

 Name your Thing on Amazon AWS IoT

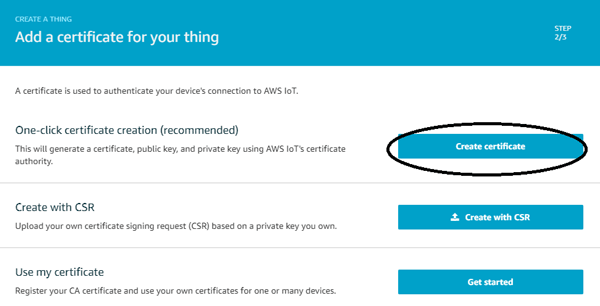

Step 7:- Now click on “Create Certificate”.

 Create Certificate on Amazon AWS IoT



Step 8:- Now, AWS will provide the keys for the thing you created earlier. You can access this thing through these keys only. First, click on Activate button and download the three key files and save it on your PC.

Certificate Created on Amazon AWS IoT



The three files shown in above figure should be downloaded in a folder on you system.

Note: For some users the CA file downloaded in some other format, it might open as a stream of code. So, to get rid of this problem, just right click on the code and save as it in ‘.pem’ extension file.

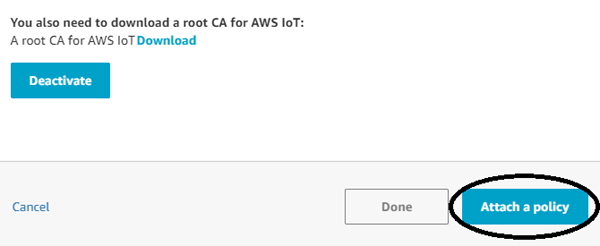

Step 9:- After creating the certificate we need to create a policy for the thing. For this click on “Attach a policy”.

 Attach a Policy on Amazon AWS IoT

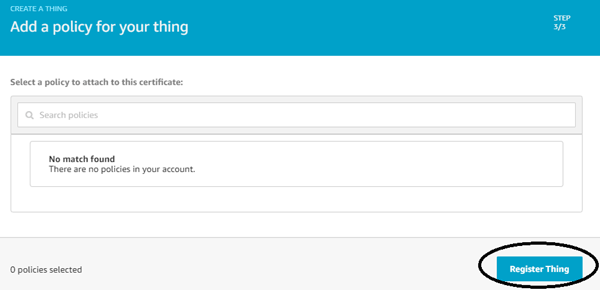

Step 10:- At this time there will be no policies in your account, since you haven’t created one, so for now click on “Register Thing”.

 Register Thing on Amazon AWS IoT

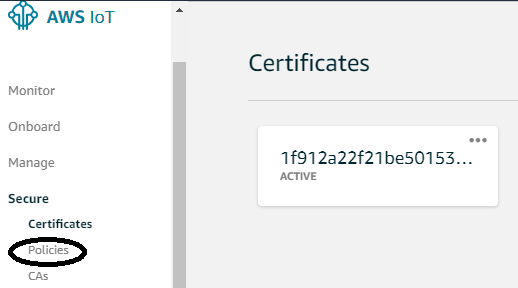

Step 11:- Now, a window will open, here you can create policy by clicking on “secure” and then “policies” in the left side menu.

Add Policy to your Thing on Amazon AWS IoT



Step 12:- Now click on “Create a policy”.

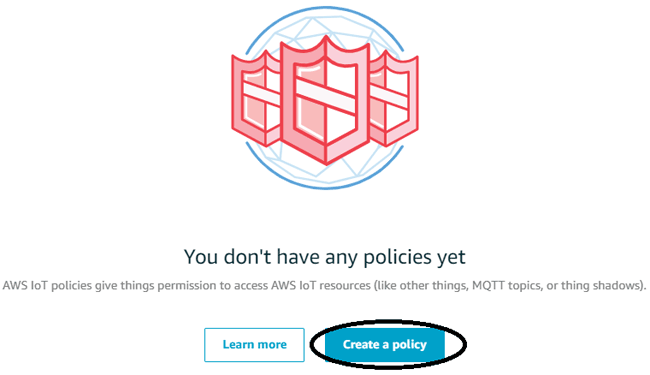

Create a Policy on Amazon AWS IoT



Step 13:- Here, name your policy according to you. And, in the action box type iot:* and in Resources ARN type *. Allow button should also be checked in it. Finally press the “Create” button on the end of the page to create a policy.

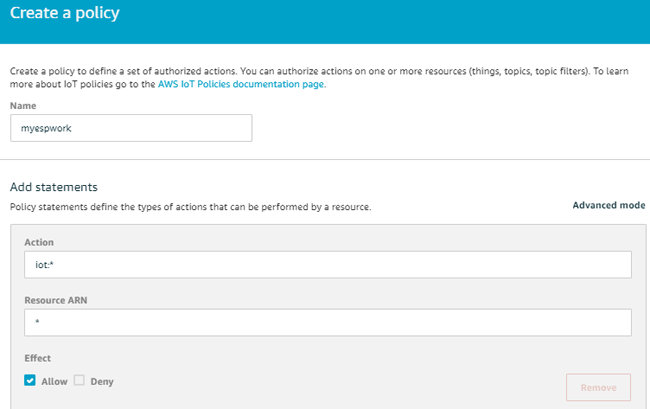

 Name your Policy on Amazon AWS IoT

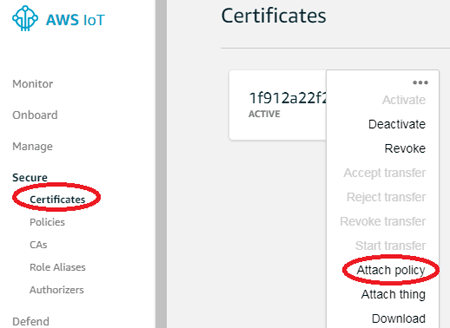

Step 14:- Now, a window will open, here click on ‘secure’ and then ‘certificates’. Therefore, you have policy now, attach it by clicking on ‘certificates’ and then ‘Attach policy’.

 Setup Thing on Amazon AWS IoT

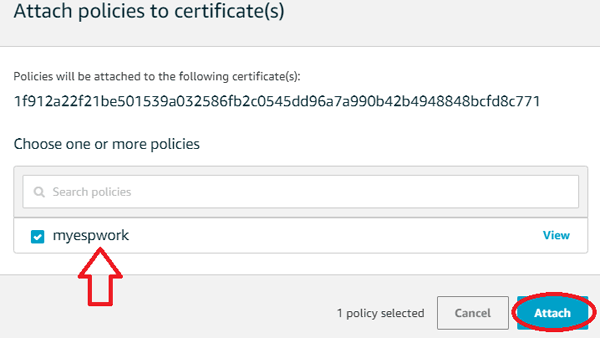

Step 15:- Now, select the name of the policy you have created and then click on “Attach” button.

Attach Policy and Certificate with Thing on Amazon AWS IoT



We have successfully created and attached a certificate and a policy with the thing. Now we can check if the thing is working by using the “test” option in the AWS IOT console. But before this we will need Broker address of our thing.



Getting AWS Thing details

To get the details like broker address, update link and etc of your thing, click on ‘manage’ option and then on ‘name of the things’.

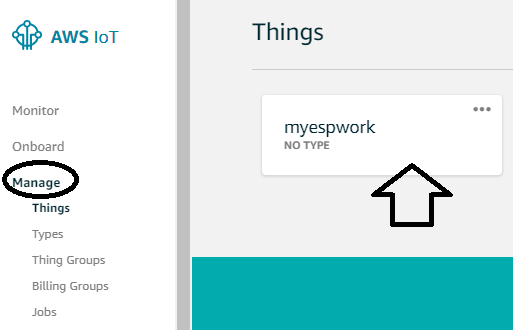

Getting Thing Details on Amazon AWS IoT



Now, a window will appear, in this navigate to “interact” and you will be provided all the links to access your things. Take the HTTPS link from here for the testing of your thing.

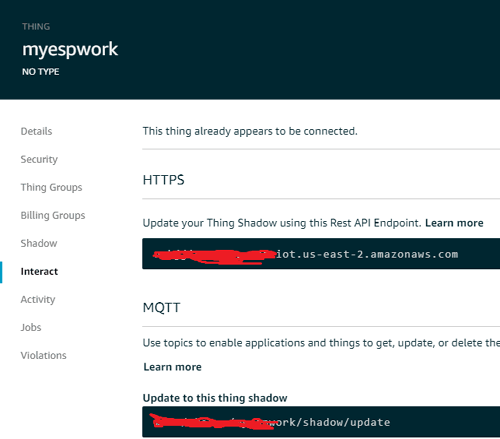

 Details of Things on Amazon AWS IoT



Testing the Thing

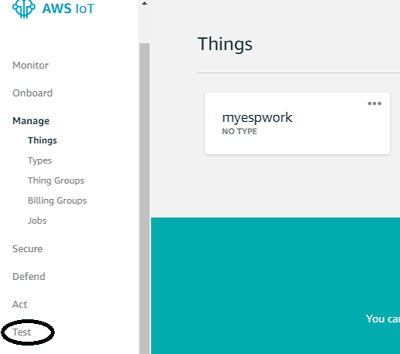

1. Go to the main screen and click on the “Test” option in left hand side, to the our thing.

 Testing the Thing on Amazon AWS IoT



2. Now, in the test option you will see two more sub-options, which are Subscribe to a topic and Publish to a topic. First, you have to subscribe to your thing by entering the name of it.

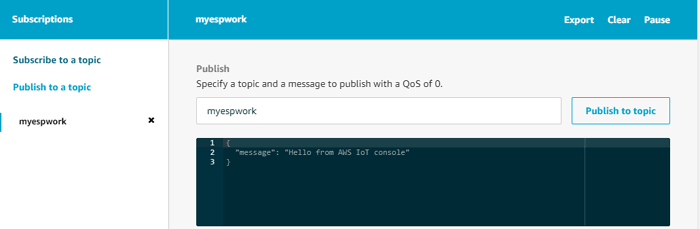

Thing Tested on Amazon AWS IoT

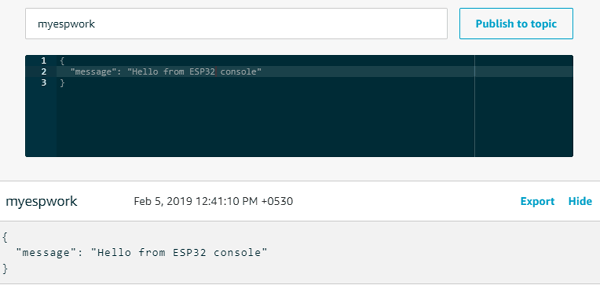

3. Now click on Publish to topic and you should see a message in your thing as shown below:

 Amazon AWS IoT Thing in Action



Hence, you have successfully completed the getting started tutorial of AWS IoT. You can also use AWS IoT for sending email using ESP8266. Stay tuned with us for more amazing AWS based IoT projects.
